Name: Galvanized Woven Wire Mesh For Filtration And Screening
Brand: HEBEI CITTI MESH CO.,LTD
Price: 200.00 USD
Availability: InStock

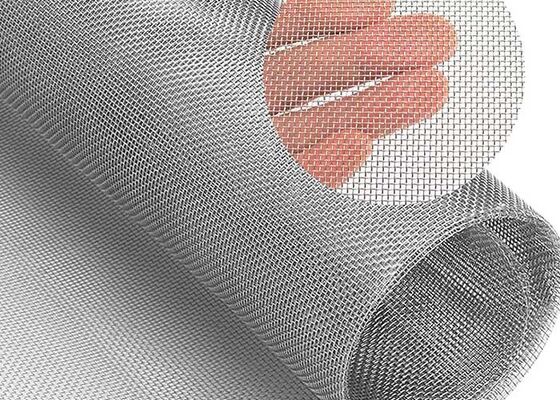

Galvanized Woven Wire Mesh For Filtration And Screening

Ampliación de imagen : Galvanized Woven Wire Mesh For Filtration And Screening

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	cittimesh

Pago y Envío Términos:

Cantidad de orden mínima:	Negociable
Precio:	100 usd-300usd
Detalles de empaquetado:	embalaje de madera
Tiempo de entrega:	Depende de la cantidad de bienes
Condiciones de pago:	LC, T/T

Contacto

Galvanized Woven Wire Mesh For Filtration And Screening

descripción

Nombre del producto:

Cuadrícula de alambre tejido galvanizado

Solicitud:

mosquiteros para ventanas, protecciones de seguridad, tamices de granos, coladores de aceite, cribas

Resaltar:

galvanized woven wire mesh

wire mesh for filtration

woven wire cloth screening

Galvanized woven wire mesh for filtration and screening

Galvanized woven wire mesh is one of the most inexpensive options in window screen and filtration applications. The mesh is coated with zinc to protect it from rust and corrosion. The galvanized wire mesh has corrosion resistance and has a longer service life than plain steel wire mesh.

Typical applications including: window screens, safety guards, sieve grains, oil strainers, vibrating screen, liquid and gas filtration.

Types of Galvanized Woven Wire Mesh

Electro Galvanized (Before Weaving)
Electro Galvanized (After Weaving)
Hot-Dipped Galvanized (Before Weaving)
Hot-Dipped Galvanized (After Weaving)

Mesh count	Wire Dia. (mm)	Opening (mm)
3	1.6	6.87
4	1.2	5.15
5	0.95	4.13
6	0.8	3.43
8	0.7	2.43
10	0.6	1.94
12	0.55	1.56
14	0.14	1.4
16	0.38	1.24
18	0.3	1.11
20	0.27	1
22	0.25	0.9
24	0.23	0.83
26	0.2	0.78
28	0.18	0.73
30	0.15	0.7
35	0.14	0.59
40	0.14	0.5
50	0.12	0.39
60	0.12	0.3
